Oil tank truck: There are various names depending on the medium of transportation, configuration, and different local names, such as tank truck, tanker truck, oil transport truck, fuel supply truck, oil pulling truck, mobile refueling truck, tax controlled refueling truck, computerized refueling truck, diesel transport truck, gasoline transport truck, coal tar transport truck, lubricating oil transport truck, edible oil transport truck, crude oil transport truck, heavy oil transport truck, oil product transport truck, etc. Oil tank trucks can be divided into flat head oil tank trucks, pointed head oil tank trucks, and straight head oil tank trucks based on their appearance.
According to the driving form, it can be divided into 4 × 2 (single axle) oil tanker trucks, 6 × 2 (small three axle/front four rear four) oil tanker trucks, 6 × 4 (rear eight wheel/rear double axle) oil tanker trucks, 8 × 2 (front four rear six) oil tanker trucks, 8 × 4 (front four rear eight) oil tanker trucks, etc. According to the load capacity, it can be divided into light tank trucks, small tank trucks, medium tank trucks, medium to large tank trucks, and large tank trucks.

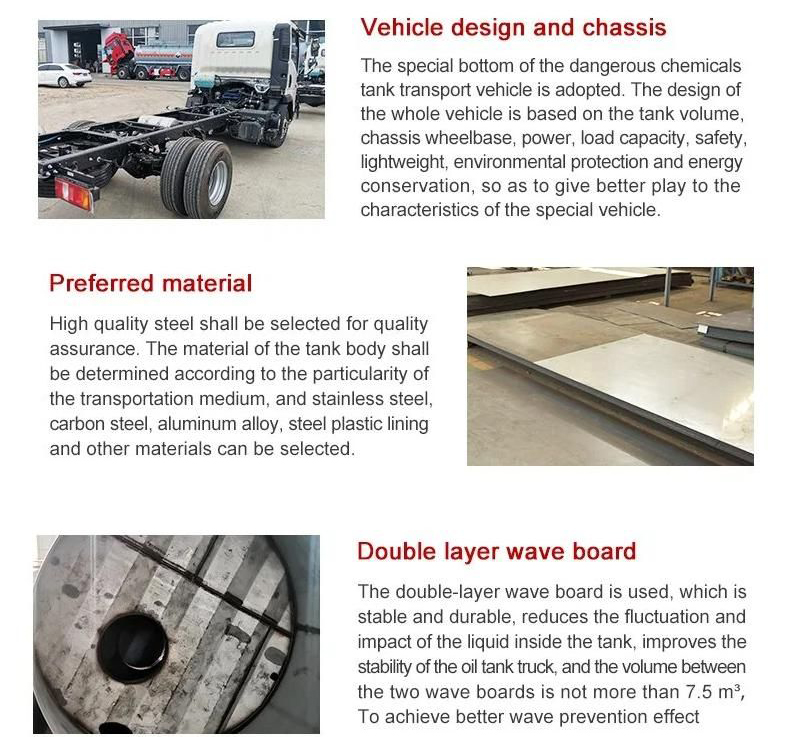

The oil tank structure of a mobile refueling truck is an elliptical cylindrical or trapezoidal cylindrical body, made of high-quality steel plates. The entire tank body is divided into single or multiple compartments, and the compartments can be divided into chambers. The lower end of the middle partition has a through-hole, and each compartment is welded with a compartment or multiple compartments in the middle. The compartments can be divided into chambers, and the lower end of the middle partition has a through-hole. Each compartment is welded with a compartment reinforcement wave partition in the middle to reduce the impact of the oil in the tank body during vehicle driving and improve the rigidity of the tank body.

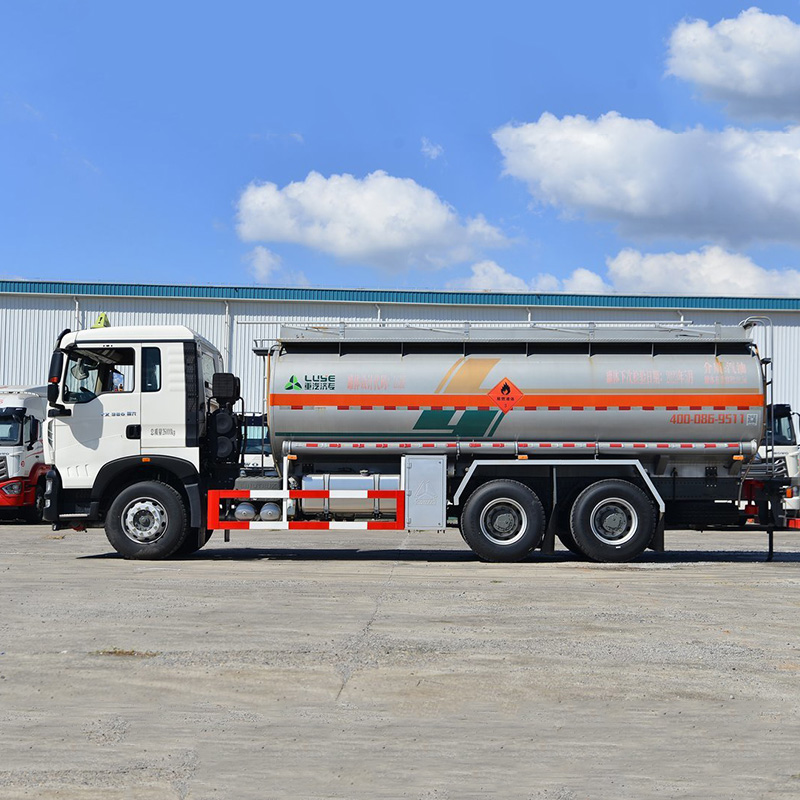

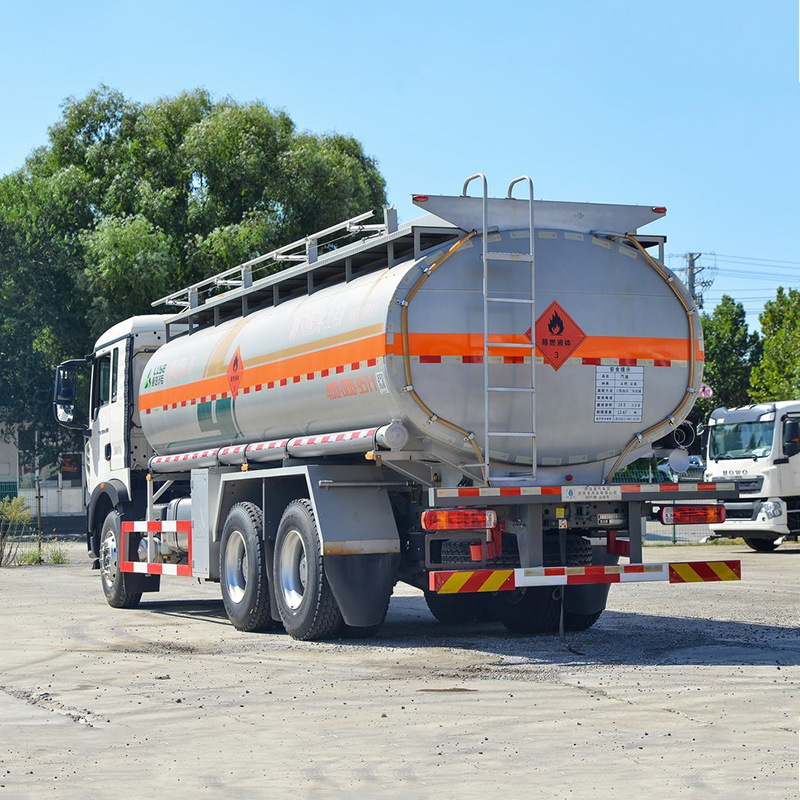

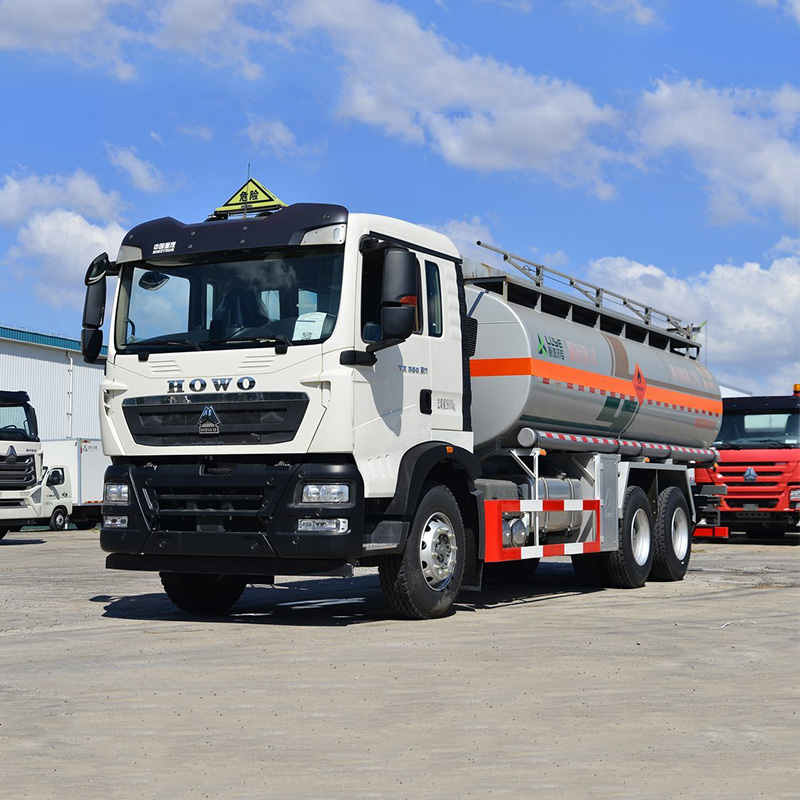

Name | SINOTRUK HOWO 20M3 Fuel Oil Tank Truck |
Dimension(LxWxH) | 10350×2496×3350 mm |
Total Mass | 25000 Kg |
Rated Payload | 15000 Kg |
Cerb Weight | 11250 Kg |
Passenger | 3 |
Approach/Departure Angle | 16/12 |
The Parameters of Chassis | |
Manufacture/Model | ZZ1257N4647D1 |
Driving Type | 8*4 left/right hand drive |
Wheel Base | 4600 + 1350+1350mm |
Front/Rear Track | 2022/1830(mm) |
Tyre | 12R22.5, 10+1 spare tire |
Front/Rear Suspension | 1500/2900(mm) |
Leaf Spring Number | 4/-,4/12,10/-,10/12 |
The Paremeters of Engine | |
Engine Model | D10.34-40 |
Rated Power | 370hp |
Fuel Type | Diesel oil |
Displacement/Capacity | 9726ml |
Emission Standard | Euro 3/4/5 |
Manufacturer | China Heavy Duty Group Co., Ltd. |
The Parameters of Equipment | |
Color/Logo | Customizable |
Material | Carbon steel (optional with stainless steel, aluminum alloy) |
Function | Fuel/oil/diesel Transporting and refueling, etc. |
Volume of Tank | 20000L |
Thickness | 5mm |
Equipment | 1. Equipped with 1 oil pump with 1 inlet valve and 1 outlet valve. 2. Tank divided into 6 compartments, each discharge valve for each compartment. 3. European standard man hole cover and air emergency valve for each compartment. 4. Equipped with folding barrier on top of the tank. 5. Equipped with fire extinguisher, front ladder, grounding wire, plastic fender. |
A: We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Suizhou city, the production base of Chinese special purpose vehicles.
2. Q: Where is your factory located?
A: We are located in Suizhou City,Hubei Province,China
3.Q:How can i visit there?
A:Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up.
4.Could you customize exactly according to my requirements?
A:Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
5.Q: Do you provide certification that we need?
A:We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.
6.Q: what's your payment terms?
A:T/T& L/C are preferred.
7.Q:Do you arrange shipment for the vehicles?
A:Yes,we can arrange shippment based on trade terms.
8. Q:What service can I get from you?
A:We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.
9.Q:How is the packing?
A:All the packing comply with exporting standard.
10.Q:How long is the lead time?
A:20-25 working days.
For other questiones,we will reply you ASAP after receiving your consult!
